C3 / Internal clearance greater than normal
C4 / Internal clearance greater than C3
RS / Rubbing seal at one side
2RS / Rubbing seals at both sides
Z / Shield at one side
ZZ / Shields at both sides
NR / Snap ring groove and snap ring
Pressed Steel Cages

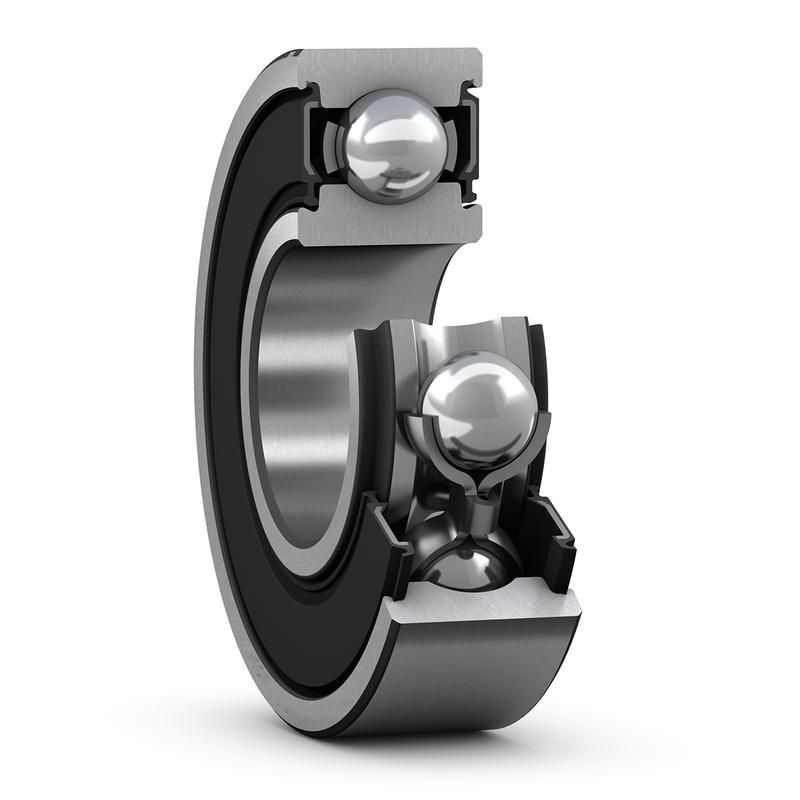

Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
For big deep groove ball bearings, machined brass cages are used.
Machined cages are also used for high speed applications.
| Serie | Number | d(mm) | D(mm) | B(mm) |
| 6200 SERIE | ||||
| 6200 | 6200 | 10.00 | 30.00 | 9.00 |
| 6200 2RS | ||||
| 6200 2RS/C3 | ||||
| 6000 Z | ||||
| 6000 ZZ | ||||
| 6000 ZZ/C3 | ||||
| 6201 | 6201 | 12.00 | 32.00 | 10.00 |
| 6201 2RS | ||||
| 6201 2RS/C3 | ||||
| 6001 Z | ||||
| 6001 ZZ | ||||
| 6001 ZZ/C3 | ||||
| 6202 | 6202 | 15.00 | 35.00 | 11.00 |
| 6202 2RS | ||||
| 6202 2RS/C3 | ||||
| 6002 Z | ||||
| 6002 ZZ | ||||
| 6002 ZZ/C3 | ||||
| 6203 | 6203 | 17.00 | 40.00 | 12.00 |
| 6203 2RS | ||||
| 6203 2RS/C3 | ||||
| 6003 Z | ||||
| 6003 ZZ | ||||
| 6003 ZZ/C3 | ||||
| 6204 | 6204 | 20.00 | 47.00 | 14.00 |
| 6204 2RS | ||||
| 6204 2RS/C3 | ||||
| 6004 Z | ||||
| 6004 ZZ | ||||
| 6004 ZZ/C3 | ||||
| 6205 | 6205 | 25.00 | 52.00 | 15.00 |
| 6205 2RS | ||||
| 6205 2RS/C3 | ||||
| 6005 Z | ||||
| 6005 ZZ | ||||
| 6005 ZZ/C3 | ||||
| 6206 | 6206 | 30.00 | 62.00 | 16.00 |
| 6206 2RS | ||||
| 6206 2RS/C3 | ||||
| 6006 Z | ||||
| 6006 ZZ | ||||
| 6006 ZZ/C3 | ||||
| 6207 | 6207 | 35.00 | 72.00 | 17.00 |
| 6207 2RS | ||||
| 6207 2RS/C3 | ||||
| 6007 Z | ||||
| 6007 ZZ | ||||
| 6007 ZZ/C3 | ||||
| 6208 | 6208 | 40.00 | 80.00 | 18.00 |
| 6208 2RS | ||||
| 6208 2RS/C3 | ||||
| 6008 Z | ||||
| 6008 ZZ | ||||
| 6008 ZZ/C3 | ||||
| 6209 | 6209 | 45.00 | 85.00 | 19.00 |
| 6209 2RS | ||||
| 6209 2RS/C3 | ||||
| 6009 Z | ||||
| 6009 ZZ | ||||
| 6009 ZZ/C3 | ||||
| 6210 | 6210 | 50.00 | 90.00 | 20.00 |
| 6210 2RS | ||||
| 6210 2RS/C3 | ||||
| 6010 Z | ||||
| 6010 ZZ | ||||
| 6010 ZZ/C3 | ||||
| 6211 | 6211 | 55.00 | 100.00 | 21.00 |
| 6211 2RS | ||||
| 6211 2RS/C3 | ||||
| 6011 Z | ||||
| 6011 ZZ | ||||
| 6011 ZZ/C3 | ||||
| 6212 | 6212 | 60.00 | 110.00 | 22.00 |
| 6212 2RS | ||||
| 6212 2RS/C3 | ||||
| 6012 Z | ||||
| 6012 ZZ | ||||
| 6012 ZZ/C3 | ||||
| 6213 | 6213 | 65.00 | 120.00 | 23.00 |
| 6213 2RS | ||||
| 6213 2RS/C3 | ||||
| 6013 Z | ||||
| 6013 ZZ | ||||
| 6013 ZZ/C3 | ||||
| 6214 | 6214 | 70.00 | 125.00 | 24.00 |
| 6214 2RS | ||||
| 6214 2RS/C3 | ||||
| 6014 Z | ||||
| 6014 ZZ | ||||
| 6014 ZZ/C3 | ||||
| 6215 | 6215 | 75.00 | 130.00 | 25.00 |
| 6215 2RS | ||||
| 6215 2RS/C3 | ||||
| 6015 Z | ||||
| 6015 ZZ | ||||
| 6015 ZZ/C3 | ||||
| 6216 | 6216 | 80.00 | 140.00 | 26.00 |
| 6216 2RS | ||||
| 6216 2RS/C3 | ||||
| 6016 Z | ||||
| 6016 ZZ | ||||
| 6016 ZZ/C3 | ||||
| 6217 | 6217 | 85.00 | 150.00 | 28.00 |
| 6217 2RS | ||||
| 6217 2RS/C3 | ||||
| 6017 Z | ||||
| 6017 ZZ | ||||
| 6017 ZZ/C3 | ||||
| 6218 | 6218 | 90.00 | 160.00 | 30.00 |
| 6218 2RS | ||||
| 6218 2RS/C3 | ||||
| 6018 Z | ||||
| 6018 ZZ | ||||
| 6018 ZZ/C3 | ||||
| 6219 | 6219 | 95.00 | 170.00 | 32.00 |
| 6219 2RS | ||||
| 6219 2RS/C3 | ||||
| 6019 Z | ||||
| 6019 ZZ | ||||
| 6019 ZZ/C3 | ||||
| 6220 | 6220 | 100.00 | 180.00 | 34.00 |
| 6020 2RS/C3 | ||||
| 6020 ZZ/C3 | ||||
| 6221 | 6221 | 105.00 | 190.00 | 36.00 |
| 6020 2RS/C3 | ||||
| 6020 ZZ/C3 | ||||
| 6222 | 6222 | 110.00 | 200.00 | 38.00 |
| 6020 2RS/C5 | ||||
| 6020 ZZ/C5 | ||||
| 6224 | 6224 | 120.00 | 215.00 | 40.00 |
| 6224 2RS/C3 | ||||
| 6224 ZZ/C3 | ||||
| 6226 | 6226 | 130.00 | 230.00 | 40.00 |
| 6226 2RS/C3 | ||||
| 6226 ZZ/C3 | ||||
| 6228 | 6228 | 140.00 | 250.00 | 42.00 |
| 6228 2RS/C3 | ||||
| 6228 ZZ/C3 | ||||
| 6230 | 6230 | 150.00 | 270.00 | 45.00 |
| 6230 2RS/C3 | ||||
| 6230 ZZ/C3 | ||||
