C3 / Internal clearance greater than normal
C4 / Internal clearance greater than C3
RS / Rubbing seal at one side
2RS / Rubbing seals at both sides
Z / Shield at one side
ZZ / Shields at both sides
NR / Snap ring groove and snap ring

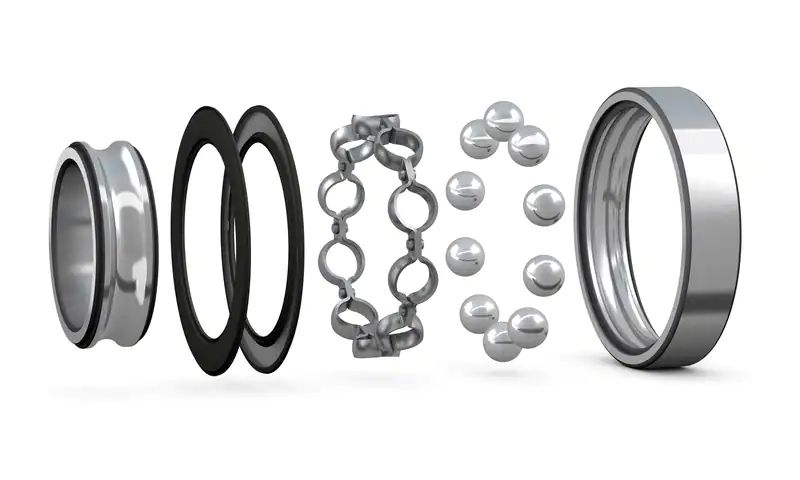

Pressed Steel Cages
Single-row deep groove ball bearings are the most common type of rolling bearings. Their use is very widespread.
In addition to open type bearings, these bearings often have steel shields or rubber seals installed on one or both sides and are prelubricated with grease. Also, snap rings are sometimes used on the periphery. As to cages, pressed steel ones are the most common.
For big deep groove ball bearings, machined brass cages are used.
Machined cages are also used for high speed applications.
| Serie | Number | d(mm) | D(mm) | B(mm) |
| 6200 SERIE | ||||
| 6200 | 6200 | 10.00 | 30.00 | 9.00 |
| 6200 2RS | ||||
| 6200 2RS/C3 | ||||
| 6200 Z | ||||
| 6200 ZZ | ||||
| 6200 ZZ/C3 | ||||
| 6201 | 6201 | 12.00 | 32.00 | 10.00 |
| 6201 2RS | ||||
| 6201 2RS/C3 | ||||
| 6201 Z | ||||
| 6201 ZZ | ||||
| 6201 ZZ/C3 | ||||
| 6202 | 6202 | 15.00 | 35.00 | 11.00 |
| 6202 2RS | ||||
| 6202 2RS/C3 | ||||
| 6202 Z | ||||
| 6202 ZZ | ||||
| 6202 ZZ/C3 | ||||
| 6203 | 6203 | 17.00 | 40.00 | 12.00 |
| 6203 2RS | ||||
| 6203 2RS/C3 | ||||
| 6203 Z | ||||
| 6203 ZZ | ||||
| 6203 ZZ/C3 | ||||
| 6204 | 6204 | 20.00 | 47.00 | 14.00 |
| 6204 2RS | ||||
| 6204 2RS/C3 | ||||
| 6204 Z | ||||
| 6204 ZZ | ||||
| 6204 ZZ/C3 | ||||
| 6205 | 6205 | 25.00 | 52.00 | 15.00 |
| 6205 2RS | ||||
| 6205 2RS/C3 | ||||
| 6205 Z | ||||
| 6205 ZZ | ||||
| 6205 ZZ/C3 | ||||
| 6206 | 6206 | 30.00 | 60.00 | 16.00 |
| 6206 2RS | ||||
| 6206 2RS/C3 | ||||
| 6206 Z | ||||
| 6206 ZZ | ||||
| 6206 ZZ/C3 | ||||
| 6207 | 6207 | 35.00 | 72.00 | 17.00 |
| 6207 2RS | ||||
| 6207 2RS/C3 | ||||
| 6207 Z | ||||
| 6207 ZZ | ||||
| 6207 ZZ/C3 | ||||
| 6208 | 6208 | 40.00 | 80.00 | 18.00 |
| 6208 2RS | ||||
| 6208 2RS/C3 | ||||
| 6208 Z | ||||
| 6208 ZZ | ||||
| 6208 ZZ/C3 | ||||
| 6209 | 6209 | 45.00 | 85.00 | 19.00 |
| 6209 2RS | ||||
| 6209 2RS/C3 | ||||
| 6209 Z | ||||
| 6209 ZZ | ||||
| 6209 ZZ/C3 | ||||
| 6210 | 6210 | 50.00 | 90.00 | 20.00 |
| 6210 2RS | ||||
| 6210 2RS/C3 | ||||
| 6210 Z | ||||
| 6210 ZZ | ||||
| 6210 ZZ/C3 | ||||
| 6211 | 6211 | 55.00 | 100.00 | 21.00 |
| 6211 2RS | ||||
| 6211 2RS/C3 | ||||
| 6211 Z | ||||
| 6211 ZZ | ||||
| 6211 ZZ/C3 | ||||
| 6212 | 6212 | 60.00 | 110.00 | 22.00 |
| 6212 2RS | ||||
| 6212 2RS/C3 | ||||
| 6212 Z | ||||
| 6212 ZZ | ||||
| 6212 ZZ/C3 | ||||
| 6213 | 6213 | 65.00 | 120.00 | 23.00 |
| 6213 2RS | ||||
| 6213 2RS/C3 | ||||
| 6213 Z | ||||
| 6213 ZZ | ||||
| 6213 ZZ/C3 | ||||
| 6214 | 6214 | 70.00 | 125.00 | 24.00 |
| 6214 2RS | ||||
| 6214 2RS/C3 | ||||
| 6214 Z | ||||
| 6214 ZZ | ||||
| 6214 ZZ/C3 | ||||
| 6215 | 6215 | 75.00 | 130.00 | 25.00 |
| 6215 2RS | ||||
| 6215 2RS/C3 | ||||
| 6215 Z | ||||
| 6215 ZZ | ||||
| 6215 ZZ/C3 | ||||
| 6216 | 6216 | 80.00 | 140.00 | 26.00 |
| 6216 2RS | ||||
| 6216 2RS/C3 | ||||
| 6216 Z | ||||
| 6216 ZZ | ||||
| 6216 ZZ/C3 | ||||
| 6217 | 6217 | 85.00 | 150.00 | 28.00 |
| 6217 2RS | ||||
| 6217 2RS/C3 | ||||
| 6217 Z | ||||
| 6217 ZZ | ||||
| 6217 ZZ/C3 | ||||
| 6218 | 6218 | 90.00 | 160.00 | 30.00 |
| 6218 2RS | ||||
| 6218 2RS/C3 | ||||
| 6218 Z | ||||
| 6218 ZZ | ||||
| 6218 ZZ/C3 | ||||
| 6219 | 6219 | 95.00 | 170.00 | 32.00 |
| 6219 2RS | ||||
| 6219 2RS/C3 | ||||
| 6219 Z | ||||
| 6219 ZZ | ||||
| 6219 ZZ/C3 | ||||
| 6220 | 6220 | 100.00 | 180.00 | 34.00 |
| 6220 2RS/C3 | ||||
| 6220 ZZ/C3 | ||||
| 6221 | 6221 | 105.00 | 190.00 | 36.00 |
| 6220 2RS/C3 | ||||
| 6220 ZZ/C3 | ||||
| 6222 | 6222 | 110.00 | 200.00 | 38.00 |
| 6220 2RS/C5 | ||||
| 6220 ZZ/C5 | ||||
| 6224 | 6224 | 120.00 | 215.00 | 40.00 |
| 6224 2RS/C3 | ||||
| 6224 ZZ/C3 | ||||
| 6226 | 6226 | 130.00 | 230.00 | 40.00 |
| 6226 2RS/C3 | ||||
| 6226 ZZ/C3 | ||||
| 6228 | 6228 | 140.00 | 250.00 | 42.00 |
| 6228 2RS/C3 | ||||
| 6228 ZZ/C3 | ||||
| 6230 | 6230 | 150.00 | 270.00 | 45.00 |
| 6230 2RS/C3 | ||||
| 6230 ZZ/C3 | ||||
